SUTRA model used to evaluate the role of uplift and erosion in the persistence of saline groundwater in the shallow subsurface

Metadata Updated: November 12, 2020

A modified version of the three-dimensional, variable-density solute-transport model (SUTRA) was developed to simulate the effects of erosion and uplift on the flushing of brine with meteoric water in Permian through Mississippian rocks of the Appalachian Plateaus. The model was run in 10-Ma transient simulations for a range of values of permeability and anisotropy. Model results indicate that the depth of shallow Paleozoic brine in the Appalachian Plateaus is controlled by the flushing rate of brine and the uplift/erosion rate. Knowledge concerning the erosion rate and the depth of brine can allow estimation of the effective regional permeability of the sedimentary rock. This USGS data release contains all of the input and output files for the simulations described in the associated model documentation report (https://doi.org/10.1002/2017GL072980). This data release also includes (1) the modified SUTRA (v2.2) source code, and (2) ancillary files used to create the model mesh with Argus ONE, export model input files with MODELMUSE, and a summary of model results in EXCEL spreadsheets.

Access & Use Information

License: No license information was provided. If this work was prepared by an officer or employee of the United States government as part of that person's official duties it is considered a U.S. Government Work.

Downloads & Resources

Dates

Metadata Date March 24, 2016
Metadata Created Date November 12, 2020
Metadata Updated Date November 12, 2020
Reference Date(s) January 1, 2017 (publication)
Frequency Of Update notPlanned

Metadata Source

Harvested from DOI Open Data

Graphic Preview

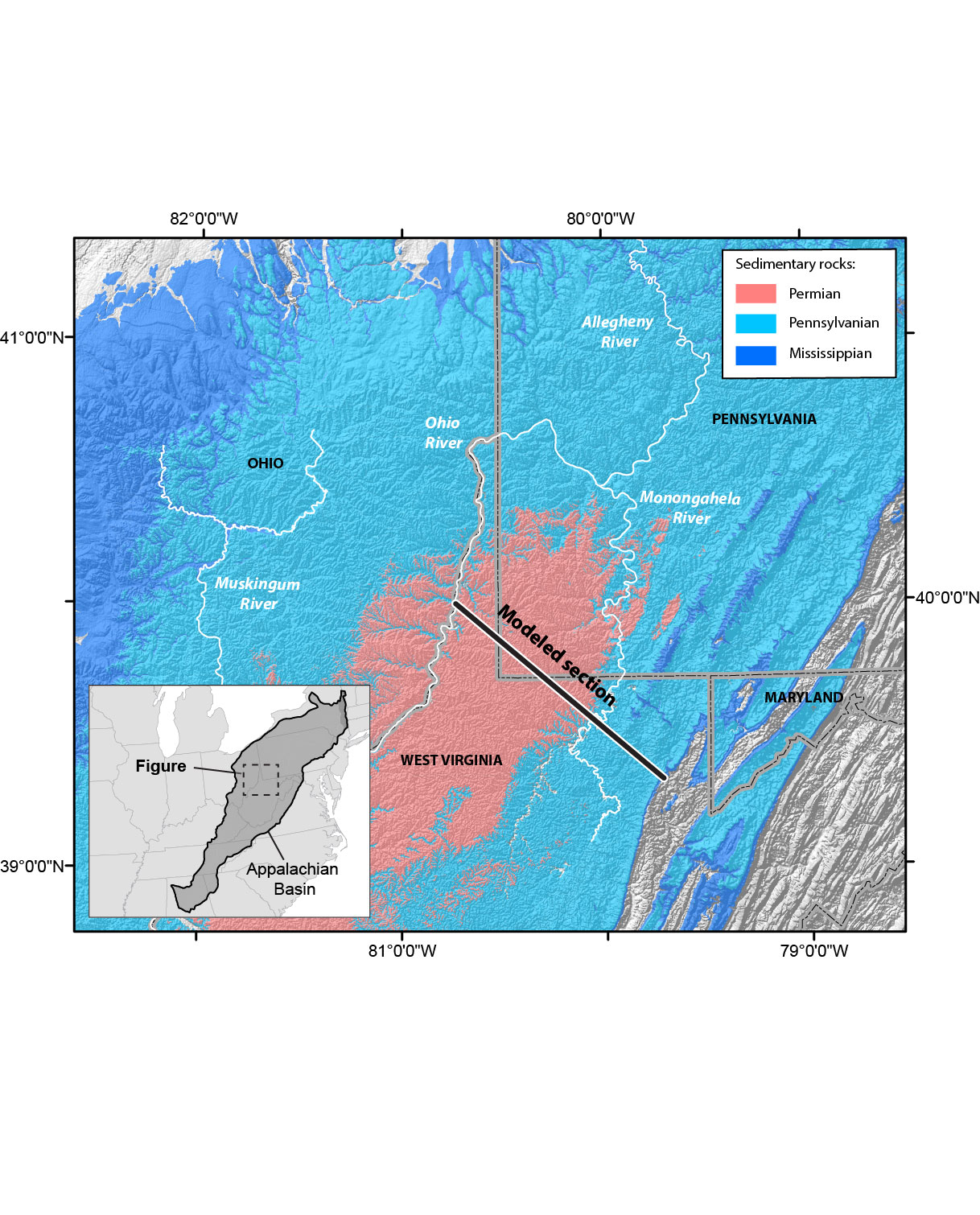

Image of the model domain and active area of the model.

Additional Metadata

Resource Type Dataset
Metadata Date March 24, 2016
Metadata Created Date November 12, 2020
Metadata Updated Date November 12, 2020
Reference Date(s) January 1, 2017 (publication)
Responsible Party U.S. Geological Survey (Point of Contact)
Contact Email
Guid
Access Constraints Use Constraints: none, Access Constraints: None. Acknowledgement of the U.S. Geological Survey would be appreciated in products derived from this data release.
Bbox East Long -79.60
Bbox North Lat 40.01
Bbox South Lat 39.33
Bbox West Long -80.86
Coupled Resource
Frequency Of Update notPlanned
Graphic Preview Description Image of the model domain and active area of the model.
Graphic Preview File https://water.usgs.gov/GIS/browse/GRL2017-YagerThumbnail.jpg
Graphic Preview Type jpg
Licence The data have been approved for release by the U.S. Geological Survey (USGS). Although the data have been subjected to rigorous review and are substantially complete, the USGS reserves the right to revise the data pursuant to further analysis and review. Furthermore, the data are released on the condition that neither the USGS nor the U.S. Government shall be held liable for any damages resulting from authorized or unauthorized use. Although the data, software, and related material have been processed successfully on a computer system at the USGS, no warranty expressed or implied is made regarding the display or utility of the data on any other system, or for general or scientific purposes, nor shall the act of distribution constitute any such warranty. The USGS or the U.S. Government shall not be held liable for improper or incorrect use of the data described and/or contained herein. Any use of trade, product, or firm names is for descriptive purposes only and does not imply endorsement by the U.S. Government.
Metadata Language
Metadata Type geospatial
Progress completed
Spatial Data Service Type
Spatial Reference System
Spatial Harvester True
